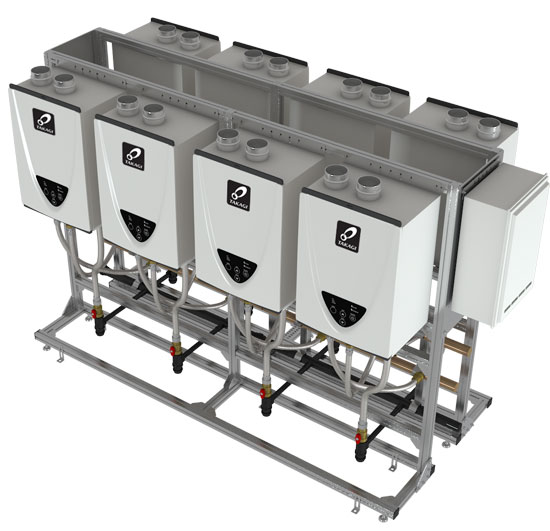

Commercial Rack Systems



Commercial Tankless Rack Systems and Common Venting

Wall Mount, Free-Standing, and Back-to-Back configurations available




Rack System Benefits

LIGHTWEIGHT

• Constructed of anodized aluminum frame
• Utilizes the industry’s lightest 199,000 BTU high efficiency condensing tankless heater


EXPANDABLE

• Multiple design & installation configurations (wall-mount, free-standing, back-to-back)
• Up to 1,592,000 BTU on a single rack system
• Able to link up to 20 heaters together with Multi-link system


REDUNDANCY

• Multiple combustion systems provide peace of mind
• Easily isolate a unit for maintenance which extends the life of the heaters


EASY FIELD INSTALLATION

• Reduce installation costs with three simple connections (cold water, hot water, and gas)


EASILY INTEGRATE STORAGE

• As the world’s largest water heater manufacturer, we can easily integrate storage into the design


Rack System Configurations

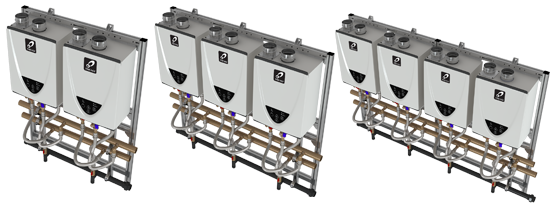

Wall Mount - 2, 3, and 4 Units

Commercial Tankless Wall Mount Rack Systems

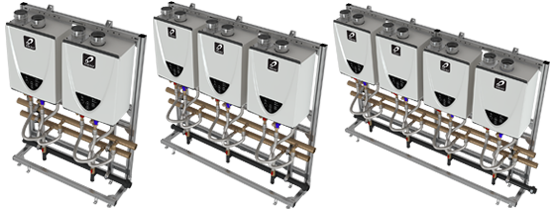

Free-Standing - 2, 3, and 4 Units



Commercial Tankless Free-Standing Rack Systems

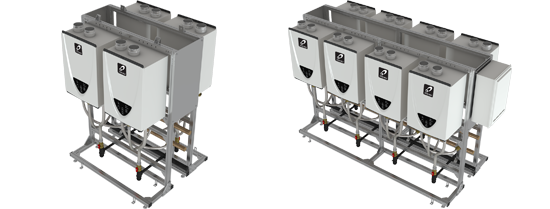

Back-to-Back - 4 to 8 Units



Commercial Tankless Back-to-Back Rack Systems

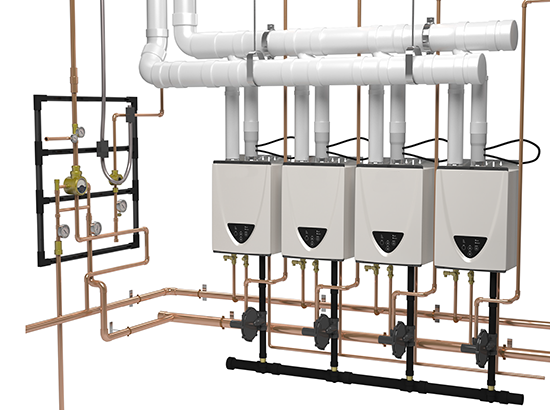

Rack System Common Venting

Commercial Tankless Rack Systems Common Venting



Rack System Common Venting Benefits

Why be locked into venting kits? The American common venting system utilizes fewer unique components so you can design your venting based on project requirements.


MORE DESIGN FLEXIBILITY


FEWER WALL PENETRATIONS


ABLE TO USE SCHEDULE 40 PVC ON INTAKE AND EXHAUST


HEATERS DON’T DE-RATE WHEN COMMON VENTED


DESIGN DOESN’T OVERRIDE REDUNDANCY BENEFITS
